Additional PRO Door Kit with J-track mounted sensor
Additional PRO Door Kit with J-track mounted sensor
Regular price
$54.00 NZD
Regular price
Sale price
$54.00 NZD
Unit price
per
Couldn't load pickup availability
The Tailwind iQ3 PRO Door Kit is a rugged, commercial grade solution and provides you with everything you need to connect another door and opener to your Tailwind controller. Use this if you would like to add another garage door to the system. Each Tailwind controller can control and monitor up to 3 doors.
NOTE: Please check for lifting cable brackets at the bottom edges of your garage door where lifting cables may be attached. If lifting cable brackets are present and they glide up / down over the J-track they will collide with the sensor in this kit. Please order the above door or universal door kit if any part of your door glides up and down and covers the J-track.
Features:
- Rugged aluminum construction and superior gap tolerance of more than 2 inches provides rock solid door position information even on loose doors in windy conditions
- Sensor and magnet are potted / sealed to protect against moisture / rain

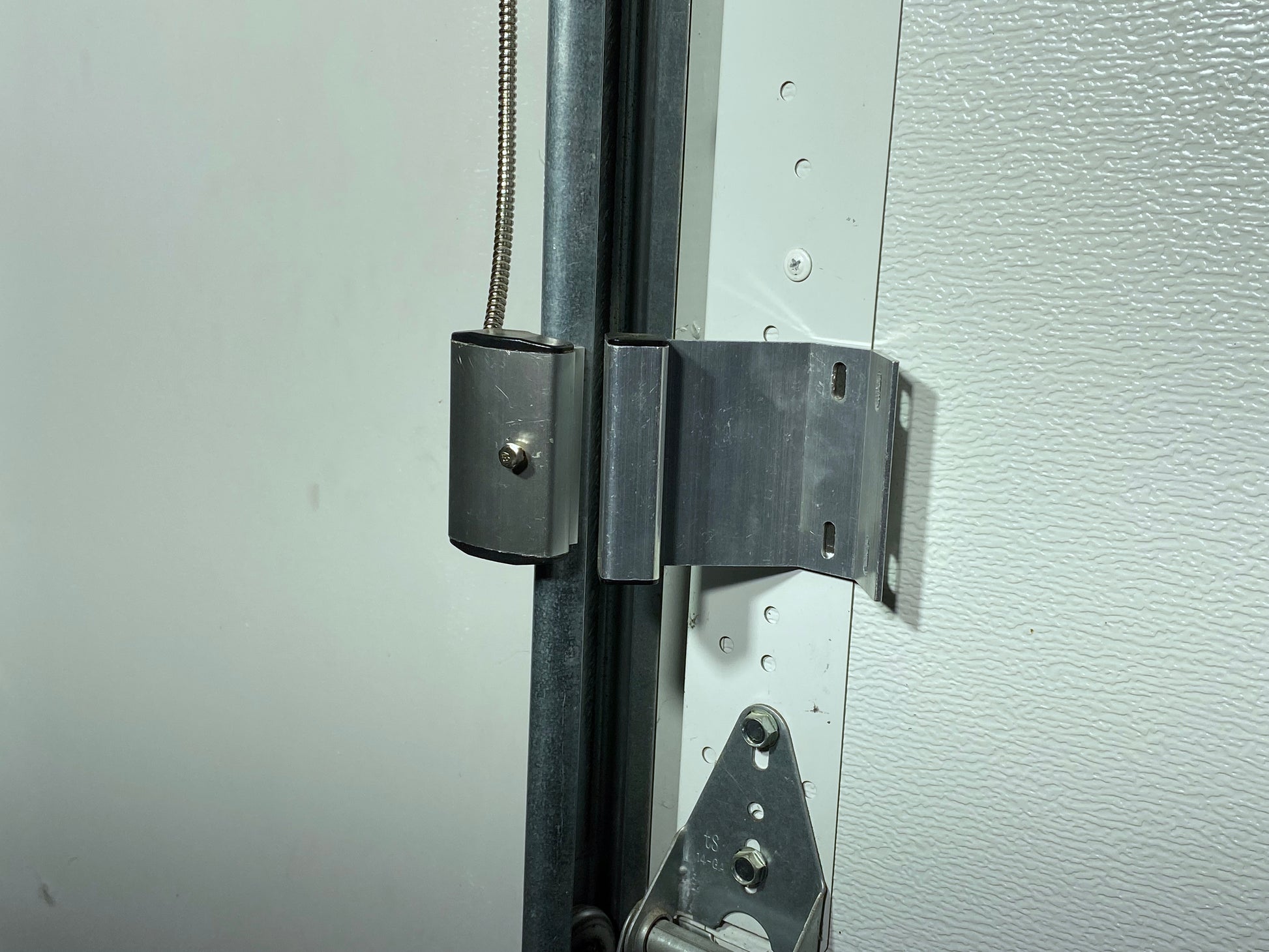

- Super simple installation. Clamps onto standard 2 inch J-track
- Extra long wires (10 meters / 32.8 feet) for both control and sensor cables
- Contains everything you need to connect one additional garage door to your Tailwind system.
- Designed for sectional garage doors mounted on standard 2 inch J-track. Please see note above regarding lifting cable brackets.

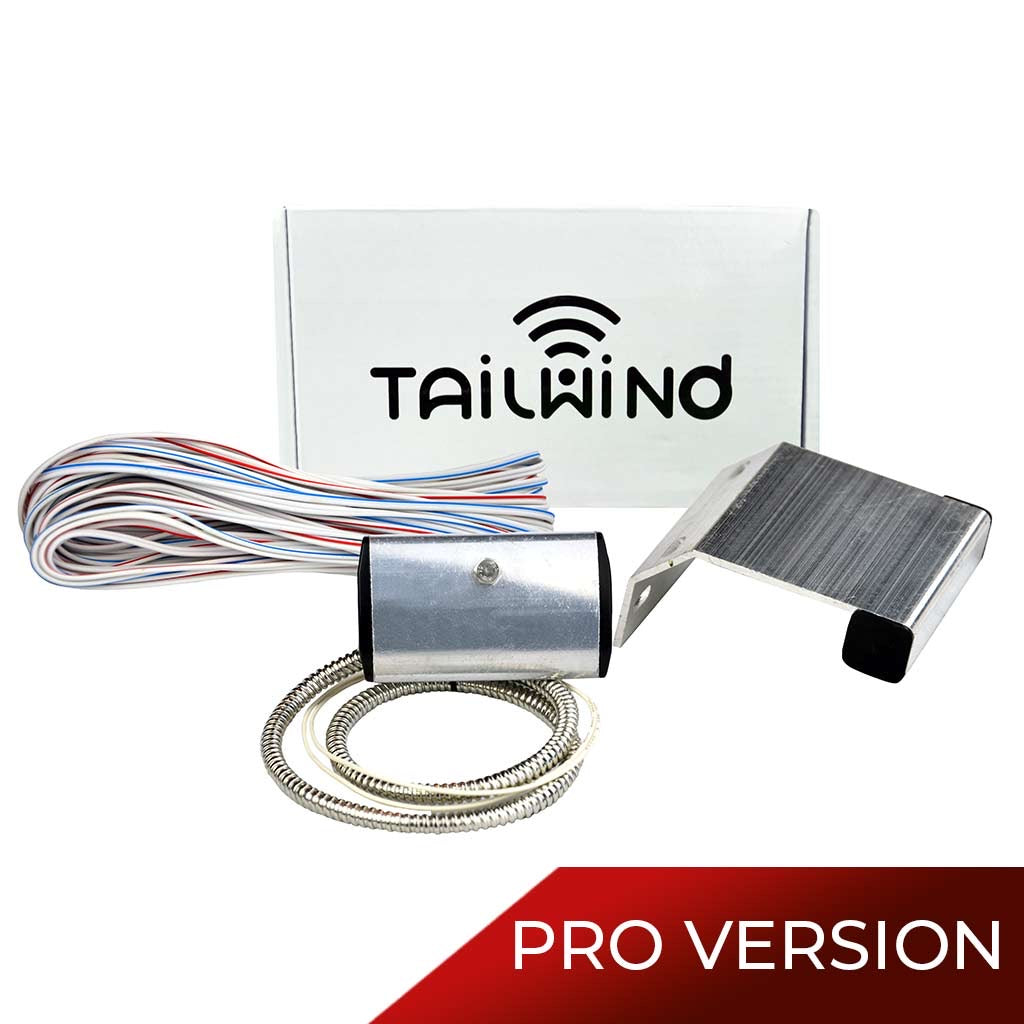

What's Included:
- DOOR SENSOR CABLE
- CONTROL CABLE
- COMMERCIAL GRADE MAGNETIC DOOR POSITION SENSOR
- MOUNTING BRACKET
- WIRE CLIPS
- 1 YEAR WARRANTY
Specifications:
|
Magnetic Door Sensor |
|
| Electrical Parameters | 100VDC / 0.5A / 100mΩ |
| Sensing Distance | 55mm |
| Material Type | Aluminum |
| Operating Temperature | -40C to 125C |
| Operating Humidity | 10% to 100% |
|
Wire Harness |
|
| Wire Gauge | 24 AWG |
| Harness Length - Control Cable | 10.0 Meters (32' 9") |
| Harness Length - Door Sensor Cable | 10.0 Meters (32' 9") |
| Connector Type | 6 Position Locking |
| Wire Type | 2 Pair 2 Wire, Stranded |
| Operating Temperature | -20C to 45C |
| Operating Humidity | 10% to 90%, non-condensing |
|
Wire Clips |
|
| Material Type | ABS |
| Mounting | Peel & Stick / Nail wire clips |
