Additional PRO Door Kit with Universal Sensor

Additional PRO Door Kit with Universal Sensor

Regular price $53.00 NZD
Regular price Sale price $53.00 NZD
Sale Sold out

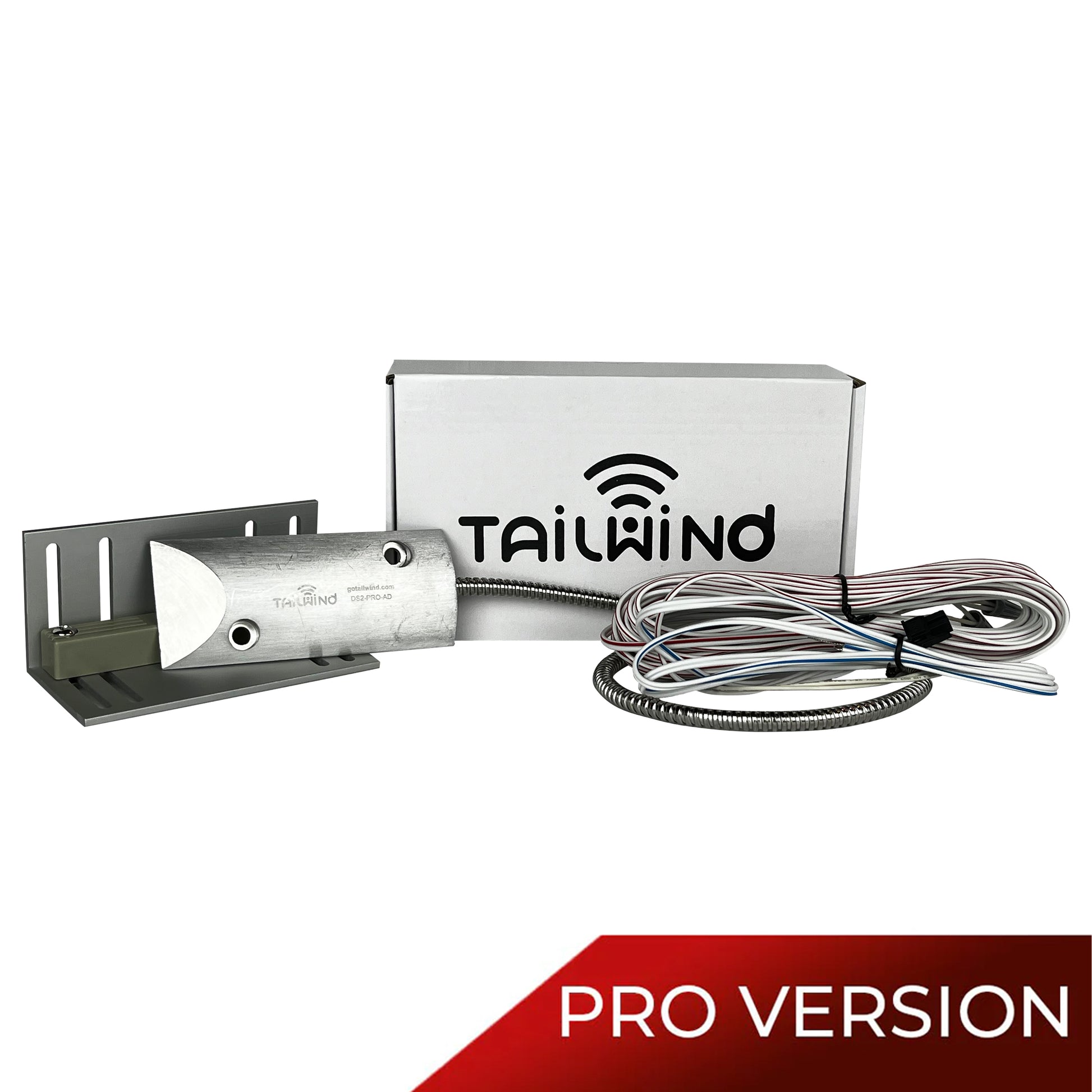

The Tailwind iQ3 PRO Door Kit - Universal Mount is a rugged, commercial grade solution and provides you with everything you need to connect another door (or gate) and opener to your Tailwind controller. Use this if you would like to add another garage door or gate to the system. Each Tailwind controller can control and monitor up to 3 doors.

NOTE: This door kit includes our universal mount sensor, making it suitable for all types of doors and gates. It can mount above the door or on the floor. If you have a standard sectional type garage door you should consider our kit that includes a J-track mounted sensor as they are easier and faster to install, and fit right on the track.

Features:
  • Rugged aluminum construction and superior gap tolerance of more than 2 inches provides rock solid door position information even on loose doors in windy conditions
  • Sensor and magnet are potted / sealed to protect against moisture / rain
  • Flexible installation options make it suitable for above door mount, floor mount, and gates.
  • Extra long wires (10 meters / 32.8 feet) for both control and sensor cables
  • Contains everything you need to connect one additional garage door or gate to your Tailwind system.
  • All door kit components are universal and can be fitted to most garage doors and gates

What's Included:

  • DOOR SENSOR CABLE
  • CONTROL CABLE
  • COMMERCIAL GRADE MAGNETIC DOOR POSITION SENSOR
  • MOUNTING BRACKET
  • WIRE CLIPS
  • 1 YEAR WARRANTY

Specifications:



Magnetic Door Sensor

Electrical Parameters 100VDC / 0.5A / 100mΩ
Sensing Distance 55mm
Material Type Aluminum
Operating Temperature -40C to 125C
Operating Humidity 10% to 100%

Wire Harness

Wire Gauge 24 AWG
Harness Length - Control Cable 10.0 Meters (32' 9")
Harness Length - Door Sensor Cable 10.0 Meters (32' 9")
Connector Type 6 Position Locking
Wire Type 2 Pair 2 Wire, Stranded
Operating Temperature -20C to 45C
Operating Humidity 10% to 90%, non-condensing

Wire Clips

Material Type ABS
Mounting Peel & Stick / Nail wire clips
