J-Track Sensor ONLY - WIRING NOT INCLUDED

J-Track Sensor ONLY - WIRING NOT INCLUDED

Use this if you already have an older Tailwind door kit and would like to upgrade your door sensor to a commercial grade sensor. More info below.

$36.00 NZD
$36.00 NZD
Sale Sold out
The Tailwind J-Track Mounted Door Sensor is a rugged, commercial grade garage door position sensor. DOES NOT INCLUDE THE WIRING!

Use this if you already have an older Tailwind door kit and would like to upgrade your door sensor to a commercial grade sensor.

This sensor can also be used with our IQ3 2.0 and 2.1 controllers, but you must supply wires and wiring accessories such as clips, zip ties, etc to secure your wiring. Alternatively, the IQ3 2.1 additional door kits include 10 meters (32 feet) of control and sensor wiring as well as wiring accessories (clips, zip ties, etc).

NOTE 1: This item includes the J-Track mounted door sensor and magnet only. The Tailwind 1st generation controllers use a wiring harness with a special connector. You must have that wiring harness to use this sensor with a 1st generation controller. The wiring harness for 1st generation controllers is included in 1st generation door kit.


NOTE 2:  Please check for lifting cable brackets at the bottom edges of your garage door where lifting cables may be attached. If lifting cable brackets are present and they glide up / down over the J-track they will collide with this sensor. See our installation videos for details.



Features

  • Rugged aluminum construction and superior gap tolerance of more than 2 inches provides rock solid door position information even on loose doors in windy conditions
  • Sensor and magnet are potted / sealed to protect against moisture / rain
  • Super simple installation. Clamps onto standard 2 inch J-track
  • Contains the sensor and magnet

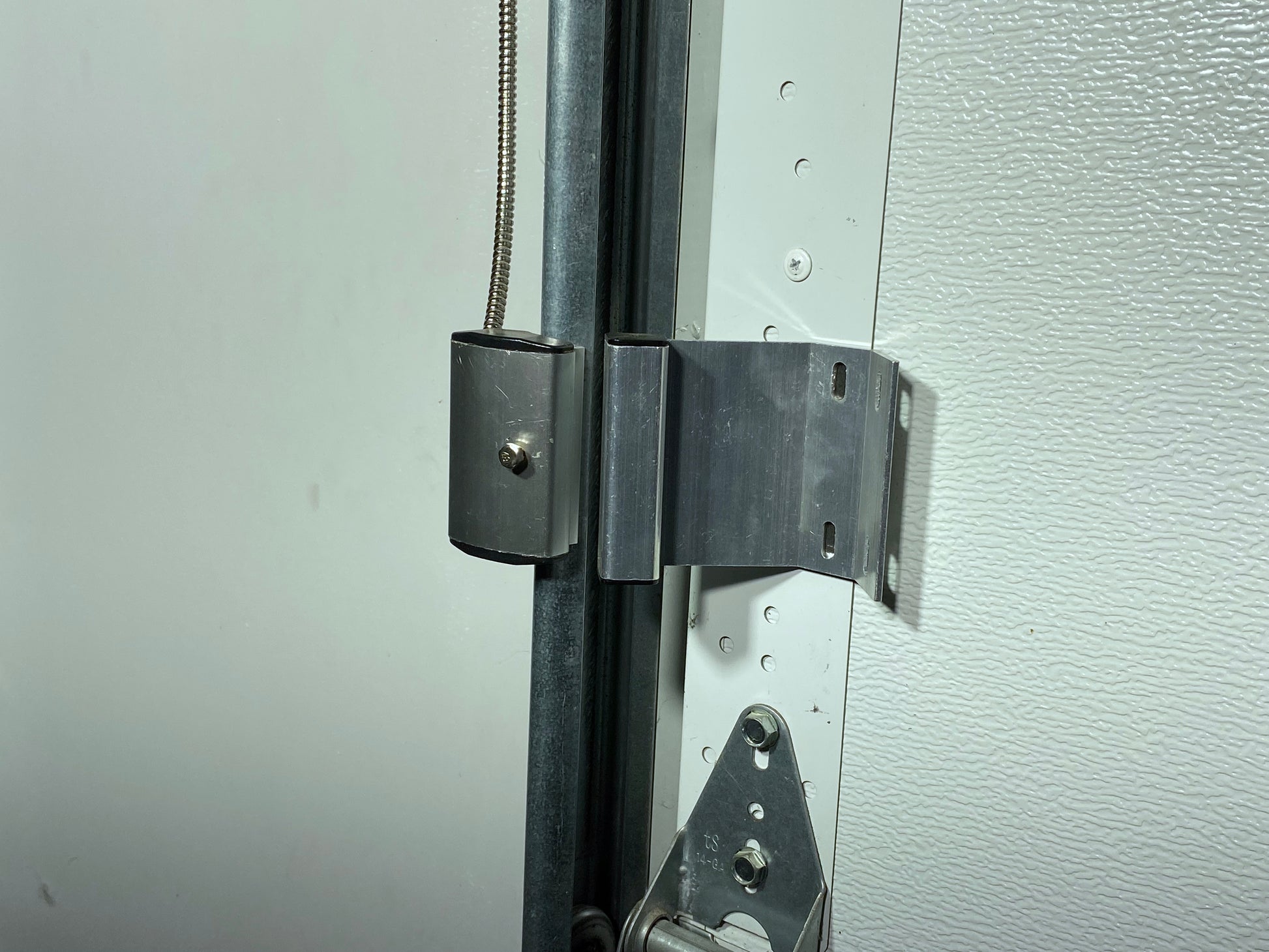

  • Designed for sectional garage doors mounted on standard 2 inch J-track. Please see note above regarding lifting cable brackets.

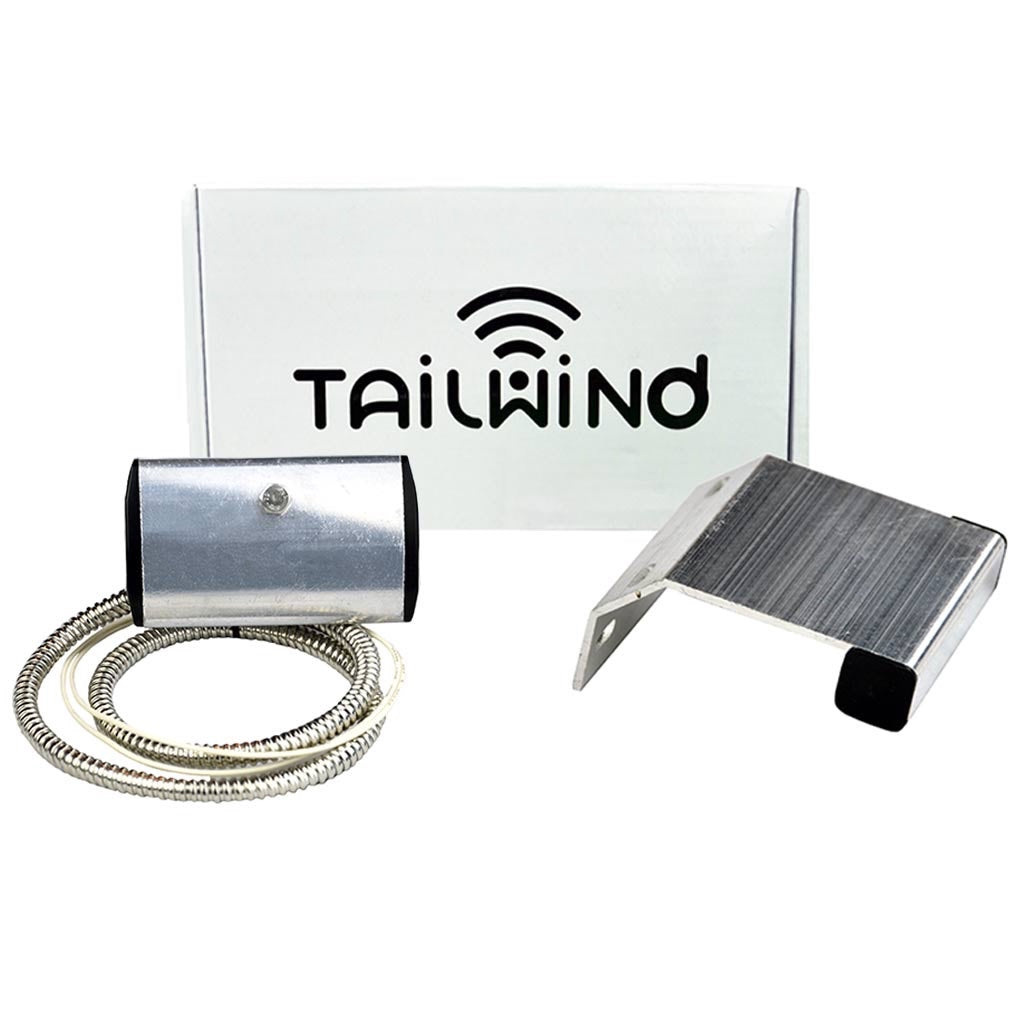

What's Included?

  • COMMERCIAL GRADE MAGNETIC DOOR POSITION SENSOR AND MAGNET
  • DOES NOT CONTAIN WIRING HARNESS
  • MOUNTING BRACKET
  • 1 YEAR WARRANTY

Specifications

 Magnetic Door Sensor

Electrical Parameters: 100VDC / 0.5A / 100mΩ

Sensing Distance: 55mm

Material Type: Aluminum

Operating Temperature: -40C to 125C

Operating Humidity: 10% to 100%
