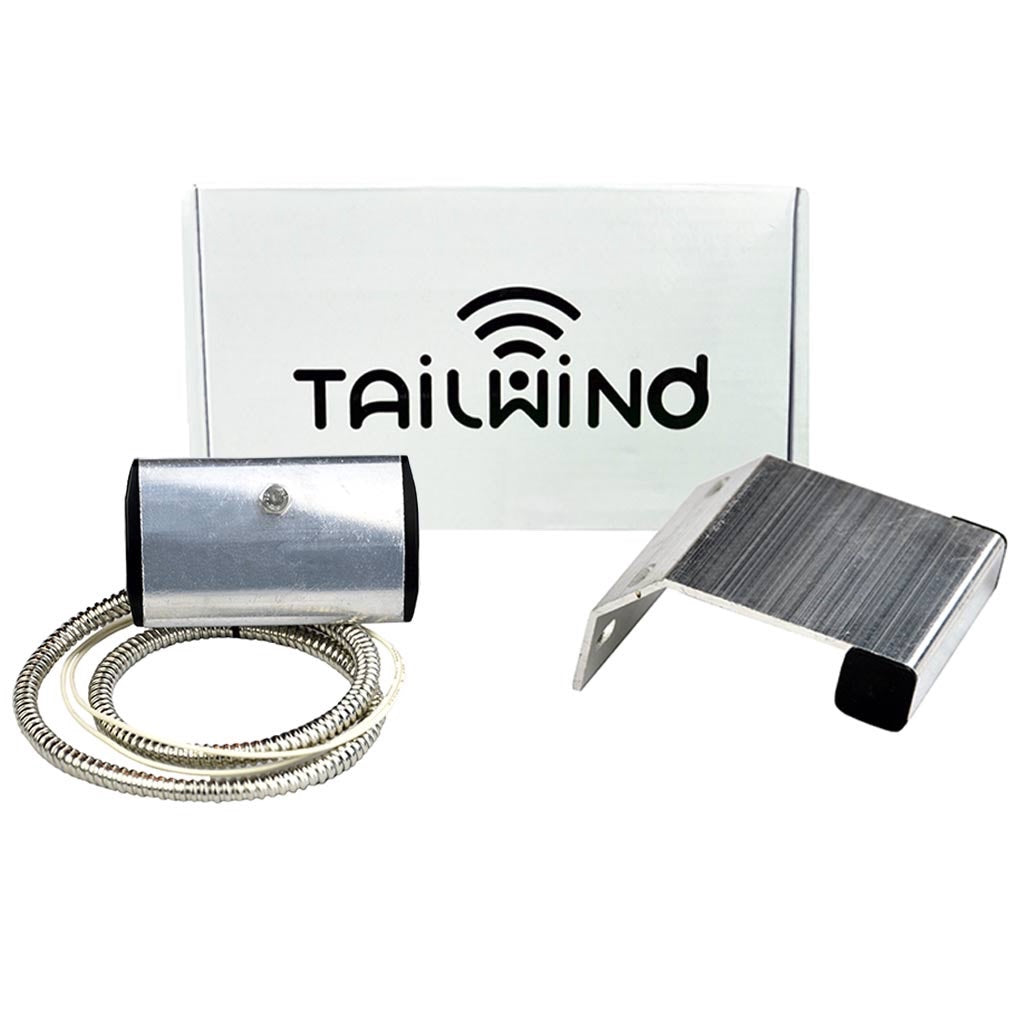

Tailwind iQ3 PRO Door Sensor - wiring not included

The Tailwind iQ3 PRO Door Sensor is a rugged, commercial grade garage door position sensor. DOES NOT INCLUDE THE WIRING! Use this if you already have a Tailwind door kit and would like to upgrade your door sensor to a commercial grade sensor. Each Tailwind controller can control and monitor up to 3 doors.
NOTE: Please check for lift cable brackets at the bottom edges of your garage door where the lifting cables may be attached. If lift cable brackets are present and they glide up / down over the J-track they will collide with the Pro Door sensor. Please order the "above door" sensor kit if any part of your door glides up and down and covers the J-track.

Features:
  • Rugged aluminum construction and superior gap tolerance of more than 2 inches provides rock solid door position information even on loose doors in windy conditions
  • Sensor and magnet are potted / sealed to protect against moisture / rain
  • Super simple installation. Clamps onto standard 2 inch J-track
  • Contains the sensor and magnet

What's Included:

  • COMMERCIAL GRADE MAGNETIC DOOR POSITION SENSOR AND MAGNET
  • DOES NOT CONTAIN WIRING HARNESS
  • MOUNTING BRACKET
  • 1 YEAR WARRANTY
  • LIFETIME SUPPORT

Specifications:



Magnetic Door Sensor

Electrical Parameters 100VDC / 0.5A / 100mΩ
Sensing Distance 55mm
Material Type Aluminum
Operating Temperature -40C to 125C
Operating Humidity 10% to 100%
