Additional PRO Door Kit with J-track mounted sensor
Additional PRO Door Kit with J-track mounted sensor
The Tailwind iQ3 PRO Door Kit is a rugged, commercial grade solution and provides you with everything you need to connect another door and opener to your Tailwind controller. Use this if you would like to add another garage door to the system. Each Tailwind controller can control and monitor up to 3 doors.
- Rugged aluminum construction and superior gap tolerance of more than 2 inches provides rock solid door position information even on loose doors in windy conditions
- Sensor and magnet are potted / sealed to protect against moisture / rain

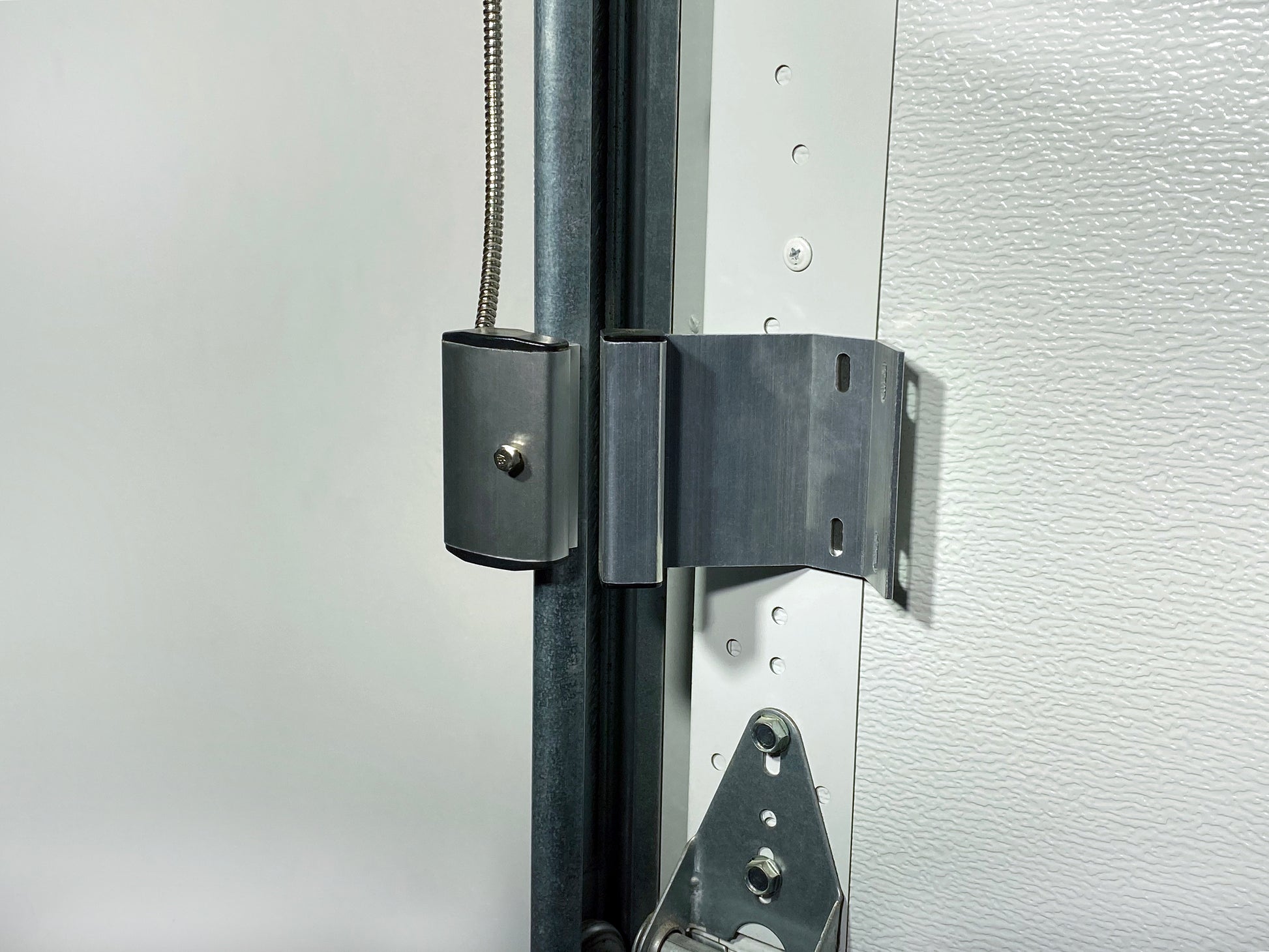

- Super simple installation. Clamps onto standard 2 inch J-track
- Extra long wires (10 meters / 32.8 feet) for both control and sensor cables
- Contains everything you need to connect one additional garage door to your Tailwind system.
- Designed for sectional garage doors mounted on standard 2 inch J-track. Please see note above regarding lifting cable brackets.

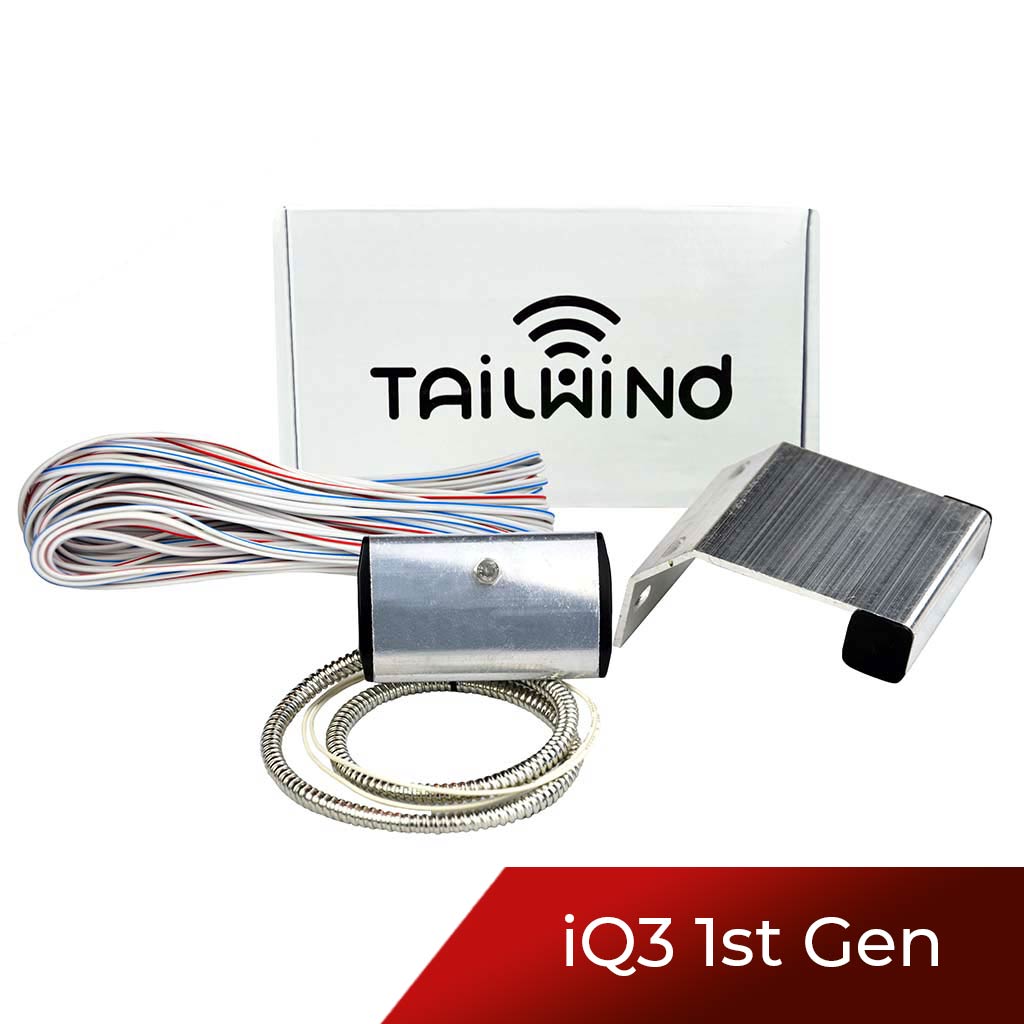

What's Included:
- DOOR SENSOR CABLE
- CONTROL CABLE
- COMMERCIAL GRADE MAGNETIC DOOR POSITION SENSOR
- MOUNTING BRACKET
- WIRE CLIPS
- 1 YEAR WARRANTY
Specifications:
Magnetic Door Sensor |
|
Electrical Parameters | 100VDC / 0.5A / 100mΩ |
Sensing Distance | 55mm |
Material Type | Aluminum |
Operating Temperature | -40C to 125C |
Operating Humidity | 10% to 100% |
Wire Harness |
|
Wire Gauge | 24 AWG |
Harness Length - Control Cable | 10.0 Meters (32' 9") |
Harness Length - Door Sensor Cable | 10.0 Meters (32' 9") |
Connector Type | 6 Position Locking |
Wire Type | 2 Pair 2 Wire, Stranded |
Operating Temperature | -20C to 45C |
Operating Humidity | 10% to 90%, non-condensing |
Wire Clips |
|
Material Type | ABS |
Mounting | Peel & Stick / Nail wire clips |
