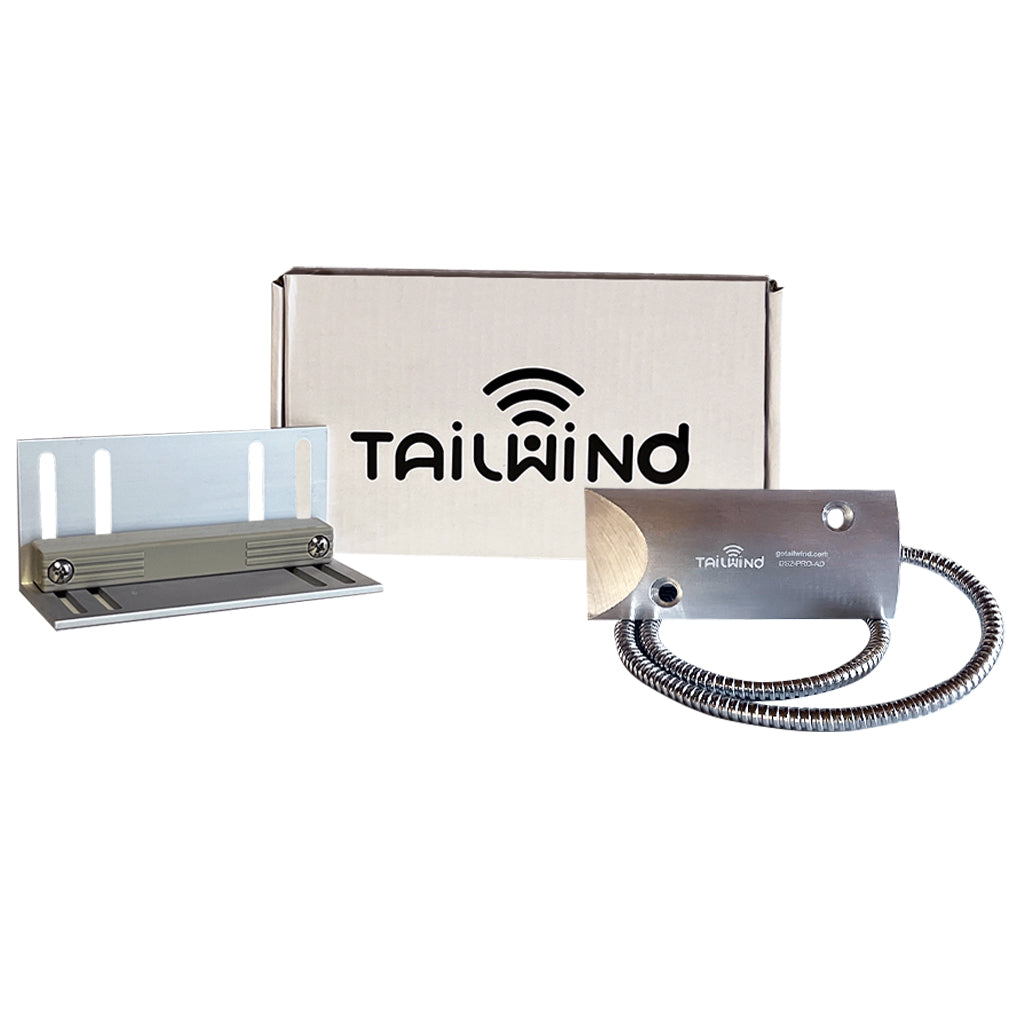

The Tailwind Universal Door Sensor is a rugged, commercial grade garage door position sensor. DOES NOT INCLUDE THE WIRING!
Use this if you already have an older Tailwind door sensor and would like to upgrade your door sensor to a commercial grade universal mount sensor.
This sensor can also be used with our IQ3 2.0 and 2.1 controllers, but you must supply wires and wiring accessories such as clips, zip ties, etc to secure your wiring. Alternatively, the IQ3 2.1 additional door kits include 10 meters (32 feet) of control and sensor wiring as well as wiring accessories (clips, zip ties, etc).
This sensor can also be used with our IQ3 2.0 and 2.1 controllers, but you must supply wires and wiring accessories such as clips, zip ties, etc to secure your wiring. Alternatively, the IQ3 2.1 additional door kits include 10 meters (32 feet) of control and sensor wiring as well as wiring accessories (clips, zip ties, etc).
NOTE: This item includes the universal sensor and magnet only. The Tailwind 1st generation controllers use a wiring harness with a special connector. You must have that wiring harness to use this sensor with a 1st generation controller. The wiring harness for 1st generation controllers is included in 1st generation door kits.
Features:
- Rugged aluminum construction and superior gap tolerance of more than 2 inches provides rock solid door position information even on loose doors in windy conditions
- Sensor and magnet are potted / sealed to protect against moisture / rain
- Flexible installation options make it suitable for above door mount, floor mount, and gates.
- All door kit components are universal and can be fitted to most garage doors and gates
What's Included:
- COMMERCIAL GRADE MAGNETIC DOOR POSITION SENSOR
- MAGNET WITH MOUNTING BRACKET
- DOES NOT CONTAIN WIRING
- 1 YEAR WARRANTY
Specifications:
|
Magnetic Door Sensor |
|
| Electrical Parameters | 100VDC / 0.5A / 100mΩ |
| Sensing Distance | 55mm |
| Material Type | Aluminum |
| Operating Temperature | -40C to 125C |
| Operating Humidity | 10% to 100% |
